The Hydra Total PFAS Reduction System

Selective Removal of "Forever Chemicals" in POU Environments

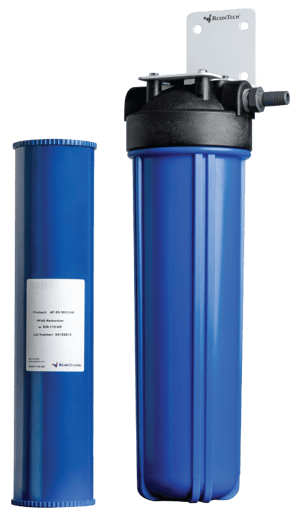

HYS-200-B-3612

THE HYDRA PFAS REDUCTION SYSTEM

The Hydra Total PFAS Reduction System delivers a sophisticated, pre-configured point-of-use water treatment solution meticulously engineered to combat the growing threat of PFAS contamination in residential and commercial water supplies. This advanced filtration system represents the culmination of ResinTech’s industry-leading research and development, offering unparalleled protection against these persistent environmental contaminants.

At the heart of this innovative system are the professional-grade AF-XX-3612 filter cartridges, powered by ResinTech® SIR-110-HP—our proprietary strong base anion resin technology that stands as the gold standard in PFAS remediation. This premium ion exchange media demonstrates remarkable selectivity and binding capacity, efficiently capturing both long and short chain PFAS compounds that conventional filtration systems often miss. The media aggressively targets and removes an extensive range of per- and polyfluorinated substances, including PFOS, PFOA, PFNA, PFHpA, PFHxS, PFBS, and PFDA—delivering comprehensive protection against a wide range of PFAS contaminants.

PFAS-Filters

Highlights

• Certified* reduction of 7 individual PFAS compounds
• 2x the flowrate, 10X the capacity compared to carbon
• Flow controller to optimize contact time
• Ideal for POU, residential drinking water
• Wall-mountable and low-profile
• Available in 4 standard sizes
• Lot control traceability
• Filters are made in the USA

Download the Specification Sheet

IAPMO-Emblem* Certified by IAPMO R&T to NSF/ANSI 53 and  NSF/ANSI/CAN 372 for Total PFAS reduction and low lead requirement.



The Development Process

Our extensive development process included multiple experimental runs with varying flow rates, resin compositions, and bed configurations. Several ResinTech resins were compared with consideration of industry certifications and competitive products. Insights were also drawn from existing installations, both municipal and residential.

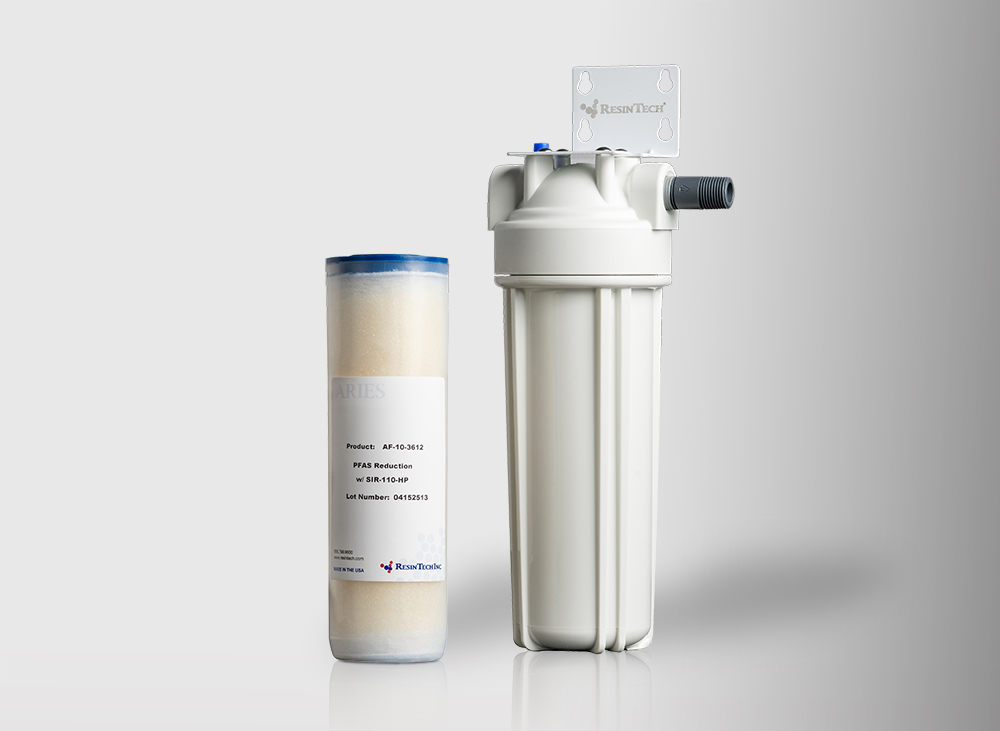

HYS-100-3612

HYS-100-3612

Height: 15.25”
Width: 6.25”
Depth: 5.25”
Inlet Connection: 0.5” FNPT
Outlet Connection: 0.5” MNPT

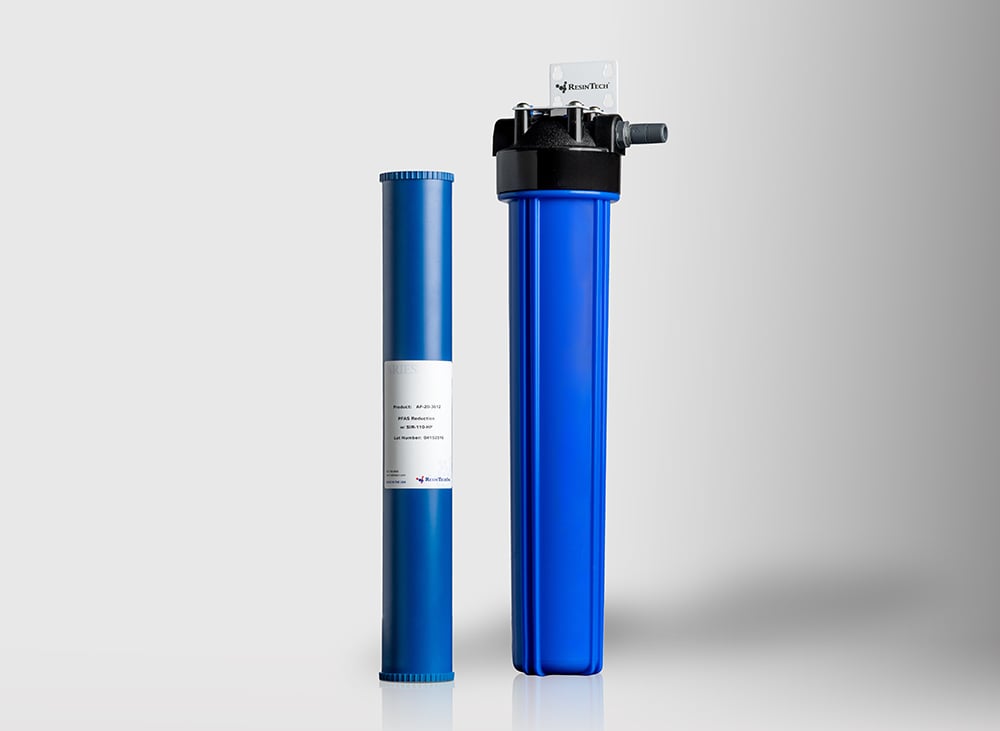

HYS-200-3612

HYS-200-3612

Height: 26.25”
Width: 7.25”
Depth: 6.25”
Inlet Connection: 0.75” FNPT
Outlet Connection: 0.5” MNPT

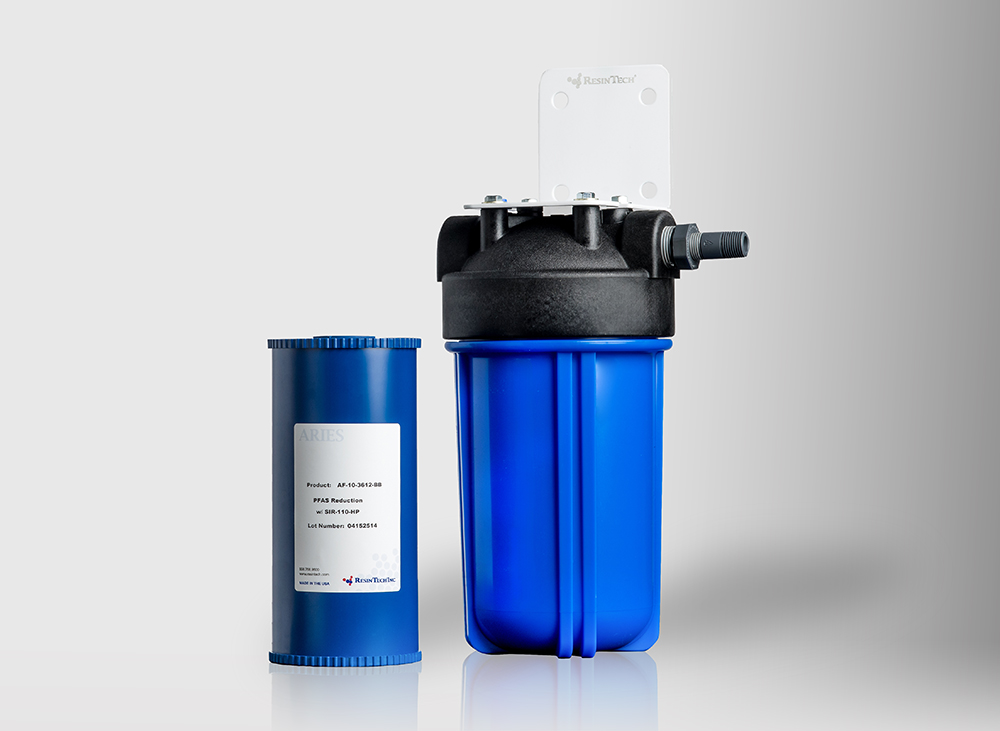

HYS-100-B-3612

HYS-100-B-3612

Height: 18.75”
Width: 9.75”
Depth: 8.5”
Inlet Connection: 1” FNPT
Outlet Connection: 0.5” MNPT

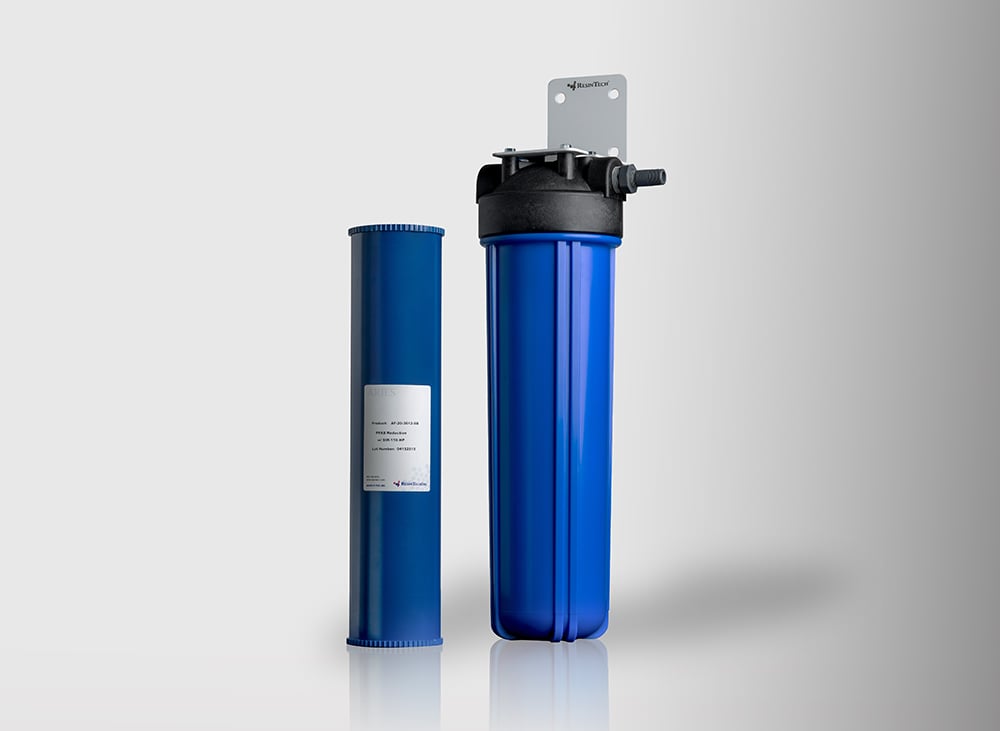

HYS-200-B-3612

HYS-200-B-3612

Height: 28.75”
Width: 9.75”
Depth: 8.5”
Inlet Connection: 1” FNPT
Outlet Connection: 0.5” MNPT

PFAS System Filter Capacity

System Models Replacement Filters Max Flow (gpm) Max Flow (lpm) Capacity (gallons)*
HYS-100-3612 AF-10-3612 0.62 2.35 1,750
HYS-200-3612 AF-20-3612 1.02 3.86 3,500
HYS-100-B-3612 AF-10-3612-BB 1.62 6.13 3,562
HYS-200-B-3612 AF-20-3612-BB 3.00 11.36 7,125

* Tested by independent and accredited third party laboratory per the NSF/ANSI Standard 53. Passed total PFAS reduction performance to 200% of rated capacity at 2,160 ppt inlet to a 99% removal endpoint.

Specifications

• Nominal Rating of 25µ
• Pressure Range: 40 - 100 psi (276 - 690 kPa)
• Temperature Range: 40 - 100˚F (4 - 38˚C)



What's Included

• One (1) AF-3612 Filter Cartridge
• Flow Controller
• Spanner Wrench
• Wall Mounting Bracket
• Filter Housing



Reduction Capabilities

PFOA: 500 ppt
PFOS: 1,000 ppt
PFHpA: 40 ppt
PFHxS: 300 ppt
PFBS: 260 ppt
PFDA: 10 ppt
PFNA: 50 ppt
